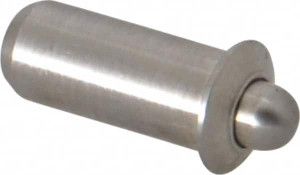

Vlier 0.441" Body Len x 3/16" Body Diam, 0.121" Plunger Diam, 1.5 Lb Init to 4.5 Lb Final End Force, 0.441" Len Under Flange, Stainless Steel Press Fit Spring Plunger 1/4" Flange Diam, 0.044" Flange Thickness, 0.485" Plunger Len SPFP52 - 05137807
Brand: Vlier- SKU:
- 05137807
- ID:
- 447549
$5.19
Vlier 0.441" Body Len x 3/16" Body Diam, 0.121" Plunger Diam, 1.5 Lb Init to 4.5 Lb Final End Force, 0.441" Len Under Flange, Stainless Steel Press Fit Spring Plunger 1/4" Flange Diam, 0.044" Flange Thickness, 0.485" Plunger Len, 3/32" Plunger Projection
Manufacturer Part #: SPFP52
S/N: 05137807
UNSPSC: 31162900
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Body Diameter (Decimal Inch) | 0.1880, 0.188in |
| Body Length (Decimal Inch) | 0.441in, 0.4410 |
| Plunger Length | 0.485in |
| Length Under Flange (Decimal Inch) | 0.4410 |
| Plunger Projection | 0.094in |
| Plunger Diameter (Decimal Inch) | 0.121in |
| Initial End Force (Lb.) | 1.50, 1.5lb |
| Final End Force (Lb.) | 4.50, 4.5lb |
| Locking Element | No |
| Length Under Flange | 0.441in |
| Nose Diameter | 0.121in |
| Flange Thickness | 0.044in |
| Application | Light End Force |
| Flange Diameter (Decimal Inch) | 0.25in |
| Flange Thickness (Decimal Inch) | 0.0440 |
| Plunger Length (Decimal Inch) | 0.4850 |
| Plunger Projection (Decimal Inch) | 0.0940 |
| Body Material | Stainless Steel |
| Nose Material | Stainless Steel |
| PSC Code | 3460 |
