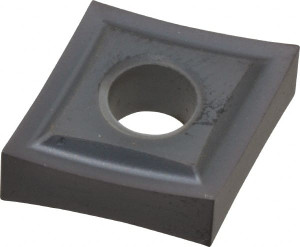

Kennametal CNGP430 KC5010 Carbide Turning Insert TiAlN Finish, Neutral, 12.9mm Long, 1/2" Inscribed Circle, 0.0039" Corner Radius, 3/16" Thick, 80° Diamond, Series KENLOC 1868419 - 05228317
Brand: Kennametal- SKU:
- 05228317
- ID:
- 671501
$38.25
Kennametal CNGP430 KC5010 Carbide Turning Insert TiAlN Finish, Neutral, 12.9mm Long, 1/2" Inscribed Circle, 0.0039" Corner Radius, 3/16" Thick, 80° Diamond, Series KENLOC
Manufacturer Part #: 1868419
S/N: 05228317
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | CNGP430.2 |
| ISO Insert Code | CNGP120401 |
| Relief Angle | 0 |
| Insert Style | CNGP |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80 |
| Manufacturer Grade | KC5010 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Aluminum & No |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.20 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5077 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, N, S |
| Secondary Workpiece Material Code | N, P, S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 1868419 |
| Material Grade | C3, C4 |
| Coating Classification | PVD |
| Chip Breaker | Common |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNGP4302 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| ANSI Size Code | 430.2 |
| ISO Size Code | 120401 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 4202 |
