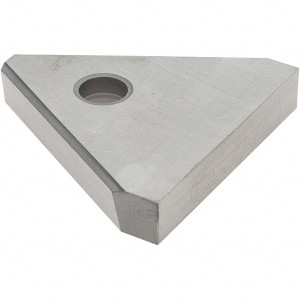

Iscar XNUW 3606-10 IC20 Carbide Grooving Insert Uncoated, Neutral, 36.5mm Cutting Width, Series V-Lock 6402755 - 05411996
Brand: Iscar- SKU:
- 05411996
- ID:
- 648604
$82.20
Iscar XNUW 3606-10 IC20 Carbide Grooving Insert Uncoated, Neutral, 36.5mm Cutting Width, Series V-Lock
Manufacturer Part #: 6402755
S/N: 05411996
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | XNUW |
| Insert Size Code | 360610 |
| Cutting Width (Decimal Inch) | 1.4370 |
| Cutting Width (mm) | 36.50 |
| Insert Hand | Neutral |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC20 |
| Full Radius | No |
| Rake | Positive |
| Insert Holding Method | Screw |
| Insert Size | 360610 |
| Cutting Height (mm) | 6.35 |
| Cutting Height (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Series | V-Lock |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 1.3622 |
| Overall Length (mm) | 34.60 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (mm) | 19.05 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Overall Width (mm) | 36.50 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.4370 |
| Included Angle Degree | 60 |
| Coating/Finish | Uncoated |
| Single Or Double End | Single |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.50 |
