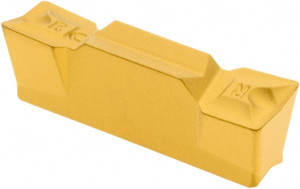

Iscar HFPR 5004 IC9015 Carbide Grooving Insert TiCN/Al2O3 Finish, RH, 5mm Cutting Width, 2.5mm Max Depth, Series Heliface 6200135 - 05413596
Brand: Iscar- SKU:
- 05413596
- ID:
- 648609
$48.69
Iscar HFPR 5004 IC9015 Carbide Grooving Insert TiCN/Al2O3 Finish, RH, 5mm Cutting Width, 2.5mm Max Depth, Series Heliface
Manufacturer Part #: 6200135
S/N: 05413596
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | HFPR |
| Insert Size Code | 5004 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC9015 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 5004 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Heliface |
| Coating Process | CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 19.00 |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| Iso Code | HFPR 5004 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | HFPR 5004 |
| Coating/Finish | Al2O3 |
| Single Or Double End | Double |
| Product Service Code | 3411 |
