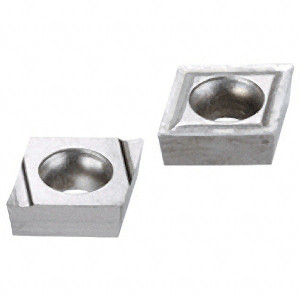

Iscar CCGT 2-0L IC30N Carbide Turning Insert Uncoated, 6.3mm Long, 1/4" Inscribed Circle, 0.0079" Corner Radius, 3/32" Thick, 80° Diamond, Series Isoturn 5504412 - 05434246
Brand: Iscar- SKU:
- 05434246
- ID:
- 669975
$23.75
Iscar CCGT 2-0L IC30N Carbide Turning Insert Uncoated, 6.3mm Long, 1/4" Inscribed Circle, 0.0079" Corner Radius, 3/32" Thick, 80° Diamond, Series Isoturn
Manufacturer Part #: 5504412
S/N: 05434246
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC30N |
| Coating/Finish | Uncoated |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (mm) | 6.30 |
| Insert Length (Decimal Inch) | 0.2480 |
| Primary Workpiece Material | Hard Material, Stainless Steel, Steel |
| Primary Workpiece Material Code | H, M, P |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Cutting Direction | Left Hand |
| Chip Breaker | T |
| Insert Size Code | 2-0 |
