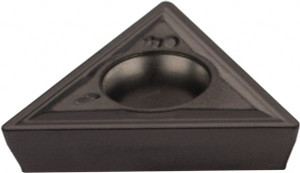

Iscar TPMT 321 IC907 Carbide Turning Insert 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle 5505522 - 05560636
Brand: Iscar- SKU:
- 05560636
- ID:
- 669990
$23.29
Iscar TPMT 321 IC907 Carbide Turning Insert 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle
Manufacturer Part #: 5505522
S/N: 05560636
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Manufacturer Grade | IC907 |
| Coating/Finish | TiAlN, TiN |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.30 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (mm) | 16.50 |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | H, M, S |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C5 |
| Chip Breaker | T |
| Insert Size Code | 321 |
