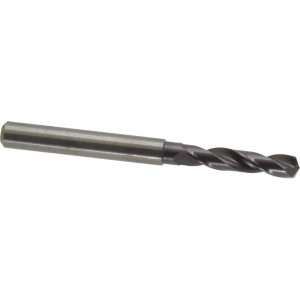

Guhring 13/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit FIREX Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, SU Point, Straight Shank 9055140051600 - 05741020
Brand: Guhring- SKU:
- 05741020
- ID:
- 736085
$107.44
Guhring 13/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit FIREX Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, SU Point, Straight Shank
Manufacturer Part #: 9055140051600
S/N: 05741020
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | SU |
| Primary Workpiece Material | Cast Iron, Steel |
| Overall Length (mm) | 66.00 |
| Shank Diameter (mm) | 6.00 |
| Series | 5514 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7980 |
| Maximum Drilling Depth (mm) | 20.26 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Standards | DIN 6537 K |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
