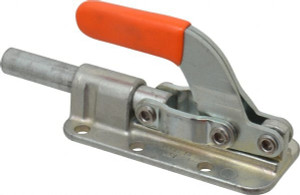

Knu-Vise 2,500 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 6 Mounting Holes, 0.34" Mounting Hole Diam, 5/8" Plunger Diam, Straight Handle PHL-2501 - 05761143
Brand: Knu-Vise- SKU:
- 05761143
- ID:
- 441917
$60.38
Knu-Vise 2,500 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 6 Mounting Holes, 0.34" Mounting Hole Diam, 5/8" Plunger Diam, Straight Handle
Manufacturer Part #: PHL-2501
S/N: 05761143
UNSPSC: 27112100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Load Capacity (Lb. - 3 Decimals) | 2500.00 |
| Load Capacity | 1133.98lb, 2500lb |
| Plunger Travel (Decimal Inch) | 2.0000 |
| Plunger Travel | 2in, 50.8mm |
| Plunger Travel (mm) | 50.80 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (Inch) | 13/16 |
| Plunger Centerline Height (mm) | 20.64 |
| Plunger Centerline Height (Decimal Inch) | 0.8125 |
| Plunger Centerline Height | 0.8125in |
| Plunger Diameter (mm) | 15.88 |
| Plunger Diameter (Decimal Inch) | 0.6250 |
| Plunger Diameter (Inch) | 5/8 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Carbon Steel |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 177.80 |
| Overall Height (Mm - 5 Decimals) | 76.20 |
| Overall Height (Decimal Inch) | 3.0000 |
| Base Length (mm) | 127.00 |
| Base Length (Decimal Inch) | 5.0000 |
| Base Width (Inch) | 2.2500 |
| Base Width | 57.15 |
| Handle Color | Orange |
| Length Distance Between Mount Holes (mm) | 15.80, 34.90 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6250 |
| Width Distance Between Mount Holes (Inch) | 1-5/8 |
| Width Distance Between Mount Holes (mm) | 41.28 |
| Mounting Hole Diameter (mm) | 8.64 |
| Front Of Base To Tip Of Toggle Bar | 2.0000 |
| Number Of Mounting Holes | 6 |
