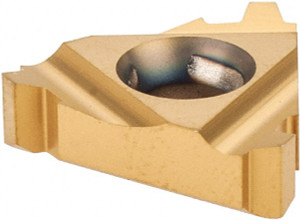

Carmex 16 IR 8 STACME MXC Carbide Laydown Threading Insert TiN Finish, RH Internal Stub Acme Thread, 8 TPI, 3/8" Inscribed Circle, 0.146" Thick 16IR8STACMEMXC - 05768387
Brand: Carmex- SKU:
- 05768387
- ID:
- 664404
$27.40
Carmex 16 IR 8 STACME MXC Carbide Laydown Threading Insert TiN Finish, RH Internal Stub Acme Thread, 8 TPI, 3/8" Inscribed Circle, 0.146" Thick
Manufacturer Part #: 16IR8STACMEMXC
S/N: 05768387
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 16IR | ||
| Insert Size Code | 16 | ||
| Insert Material | Solid Carbide | ||
| Manufacturer Grade | MXC | ||
| Material Grade | Micrograin | ||
| Threads Per Inch | 8 | ||
| Thread Type | Internal | ||
| Thread Standard | Stub Acme | ||
| Insert Hand | Right Hand | ||
| Included Angle | 29 | ||
| Coating Process | PVD | ||
| Inscribed Circle (Decimal Inch) | 0.3750 | ||
| Inscribed Circle (Inch) | 3/8 | ||
| Primary Workpiece Material | Universal | ||
| Primary Workpiece Material Code | H, K, M, N, P, S | ||
| Standards | CE, ISO 13485 | 2016, ISO 14001 | 2015, ISO 45001 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1460 | ||
| Coating/Finish | Coated |
