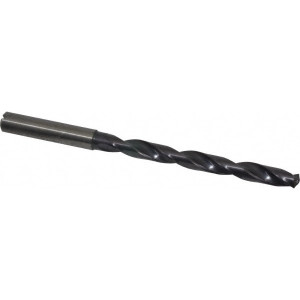

Guhring Letter K 140° Solid Carbide Taper Length Drill Bit TiAlN Finish, 76mm Flute Length, 116mm OAL, SU Point, Straight Shank, Through Coolant, Series 5512 9055120071400 - 05790456
Brand: Guhring- SKU:
- 05790456
- ID:
- 745198
$304.28
Guhring Letter K 140° Solid Carbide Taper Length Drill Bit TiAlN Finish, 76mm Flute Length, 116mm OAL, SU Point, Straight Shank, Through Coolant, Series 5512
Manufacturer Part #: 9055120071400
S/N: 05790456
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 9/32 |
| Drill Bit Size (Letter) | K |
| Drill Bit Size (Decimal Inch) | 0.2810 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Coated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight |
| Threaded Shank | No |
| Flute Length x Diamter Ratio | 7xD |
| Material Application3 | Brass, Cast Iron, Hardened Materials, Nickel Alloy, Stainless Steel, Steel, Titanium Alloy |
| Overall Length (mm) | 116.00 |
| Series | 5512 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Length X Diameter Ratio | 7xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5700 |
| Maximum Drilling Depth (mm) | 65.29 |
| Shank Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 76.00 |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Tool Application | Self-Centering |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 6537 |
| Material Grade | Submicron |
