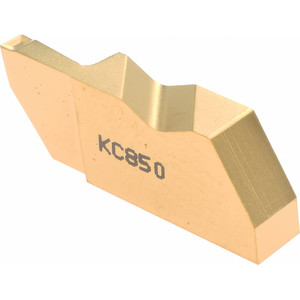

Kennametal NGD3094RK KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, RH, 2.39mm Cutting Width, 6.35mm Max Depth, Series Top Notch 1114907 - 05806419
Brand: Kennametal- SKU:
- 05806419
- ID:
- 649871
$42.27
Kennametal NGD3094RK KC850 Carbide Grooving Insert TiC/TiCN/TiN Finish, RH, 2.39mm Cutting Width, 6.35mm Max Depth, Series Top Notch
Manufacturer Part #: 1114907
S/N: 05806419
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NGD |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KC850 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Positive |
| Insert Size | 3094 |
| Material Grade | C5, C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | CVD |
| Rake Angle | 10.00 |
| Chip Breaker | K |
| Insert Seat Size | 3 |
| MSC/Manufacturer Number | NGD3094R/LK |
| Insert Height (Decimal Inch) | 0.3440 |
| Included Angle Degree | 55 |
| Coating/Finish | TiC, TiCN, TiN |
| Single Or Double End | Double |
