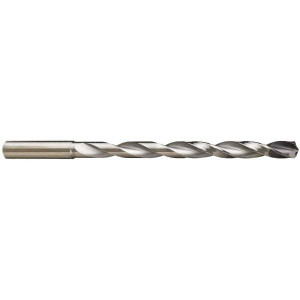

Guhring 10.5mm 140° 2-Flute Solid Carbide Extra Length Drill Bit FIREX Finish, 156mm Flute Length, 204mm OAL, 0.4724" Shank Diam, Through Coolant, Series 5525 9055250105000 - 05929005
Brand: Guhring- SKU:
- 05929005
- ID:
- 709198
$621.64
Guhring 10.5mm 140° 2-Flute Solid Carbide Extra Length Drill Bit FIREX Finish, 156mm Flute Length, 204mm OAL, 0.4724" Shank Diam, Through Coolant, Series 5525
Manufacturer Part #: 9055250105000
S/N: 05929005
UNSPSC: 23241637
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 10.50 |
| Overall Length (mm) | 204.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | FIREX |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 156.00 |
| Point Type | Standard |
| Series | 5525 |
| Cutting Direction | Right Hand |
| Tool Application | Facet Point Grinding, Self-Centering |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| Secondary Workpiece Material | Aluminum, Titanium Alloy |
| Secondary Workpiece Material Code | H, M, N, S |
| Standards | California PROP 65, DIN 6537 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Length (mm) | 45.00 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 5.5220 |
| Maximum Drilling Depth (mm) | 140.25 |
| Material Grade | Submicron |
