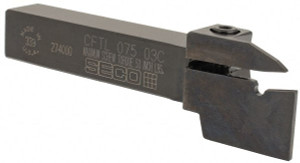

Seco Tools 0.43" Max Depth, External Left Hand Indexable Grooving/Cutoff Toolholder 5" OAL, 3/4" x 3/4" Shank, Uses LCMR Inserts, CFTL Toolholder, Series Multi-Directional Turning (MDT) 00086332 - 05978549
Brand: Seco Tools- SKU:
- 05978549
- ID:
- 686165
$409.83
Seco Tools 0.43" Max Depth, External Left Hand Indexable Grooving/Cutoff Toolholder 5" OAL, 3/4" x 3/4" Shank, Uses LCMR Inserts, CFTL Toolholder, Series Multi-Directional Turning (MDT)
Manufacturer Part #: 00086332
S/N: 05978549
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Toolholder Style | CFTL |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | LC 1603 |
| Insert Compatibility | LCMR |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.3500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.10 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Tool Application | Cut-Off, Grooving |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.6500 |
| Complete Insert Compatibility | LC.. 1603.. |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
