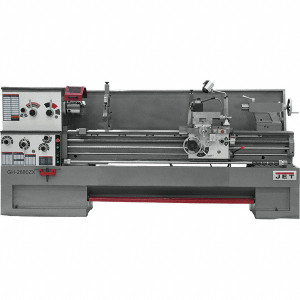

Jet 22" x 80" Engine Lathe: Geared Head, 10 hp, 230/460 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM 321980 - 06012686
Brand: Jet- SKU:
- 06012686
- ID:
- 873476
$53,660.82
Jet 22" x 80" Engine Lathe: Geared Head, 10 hp, 230/460 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM
Manufacturer Part #: 321980
S/N: 06012686
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Phase | Three |
| Spindle Speed Control | Geared Head |
| Bed Width (Inch) | 13.3750 |
| Bed Width (Inch) | 13-3/8 |
| Bed Width | 13.375in |
| Distance Between Centers (Inch) | 80 |
| Distance Between Centers | 80in |
| Cross Slide Travel | 12.0in |
| Gap Length (Decimal Inch) | 12.2500 |
| Gap Length | 12.25in |
| Cross Slide Travel (Inch) | 12 |
| Swing | 22in |
| Cross Slide Travel (Decimal Inch) | 12.0000 |
| Swing (Inch) | 22 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Minimum Spindle Speed | 25 |
| Spindle Nose Designation | D1-8 |
| Maximum Spindle Speed | 1800 |
| Overall Height | 48.8750in |
| Overall Depth | 40in, 40.0in |
| Minimum Metric Pitch (Decimal Inch) | 0.0020 |
| Number of Inch Threads | 61 |
| Minimum Metric Pitch | 0.002in |
| Spindle Taper Size (Sleeve) | 5MT |
| Spindle Taper Size | 7MT |
| Tailstock Taper Size | 5MT |
| Tailstock Travel (Decimal Inch) | 5.0000 |
| Tailstock Travel | 5.0in |
| Maximum Threads Per Inch | 72 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Overall Depth (Inch) | 40 |
| Overall Length (Inch) | 136-1/8 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0913 |
| Maximum Longitudinal Feed Per Revolution | 0.0913in |
| Minimum Cross Feed Rate Per Revolution | 0.0006in |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000600 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0365 |
| Maximum Cross Feed Rate Per Revolution | 0.0365in |
| Swing Over Cross Slide (Decimal Inch) | 13.0000 |
| Swing Over Cross Slide (Inch) | 13 |
| Swing Over Gap (Inch) | 29-1/2 |
| Swing Over Gap (Decimal Inch) | 29.5000 |
| Swing Over Gap | 29.5in |
