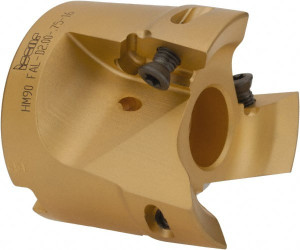

Iscar 2" Cut Diam, 3/4" Arbor Hole Diam, 0.622" Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605. Insert Style, Series HM90 3102769 - 06061774

Iscar 2" Cut Diam, 3/4" Arbor Hole Diam, 0.622" Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605. Insert Style, Series HM90 3102769 - 06061774

Brand:   Iscar
SKU:
06061774
ID:
680716
callling
$974.92
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 2" Cut Diam, 3/4" Arbor Hole Diam, 0.622" Max Depth, Indexable Square-Shoulder Face Mill Takes 3 Inserts, 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605. Insert Style, Series HM90

Manufacturer Part #: 3102769

S/N: 06061774

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Maximum Cutting Diameter (Inch)2
Maximum Cutting Diameter (Decimal Inch)2.0000
Maximum Depth of Cut (Decimal Inch)0.6220
Arbor Hole Diameter (Inch)3/4
Arbor Hole Diameter (Decimal Inch)0.7500
Compatible Insert Size CodeHM90 APCR 1605
Cutter StyleHM90 FAL-16
Cutting DirectionRight Hand
Insert Holding MethodScrew
Lead Angle0/90
SeriesHM90
Maximum Ramping Angle10.40
Overall Height (Decimal Inch)1.7500
Hub Diameter (Decimal Inch)1.8800
StandardsISO
Manufacturers Catalog NumberHM90 FAL-D2.00-.75-16
Coolant ThroughNo
Number Of Cutter Inserts3
Number Of Flutes3
