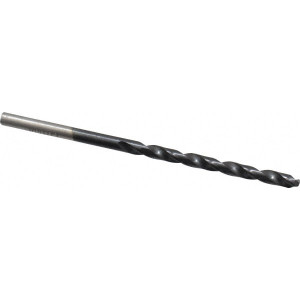

Chicago-Latrobe 1/8" 135° Cobalt Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/4" OAL, Split Point 44908 - 06130181
Brand: Chicago-Latrobe- SKU:
- 06130181
- ID:
- 716091
$8.30
Chicago-Latrobe 1/8" 135° Cobalt Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/4" OAL, Split Point
Manufacturer Part #: 44908
S/N: 06130181
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1/8 |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Titanium |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | TiAlN |
| Flute Length (Inch) | 1-5/8 |
| Overall Length (Inch) | 2-3/4 |
| Spiral Type | Regular |
| Series | 550TA |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (mm) | 28.57 |
| Shank Length (Decimal Inch) | 1.1250 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | DIN 338, NAS 907 Type J |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
