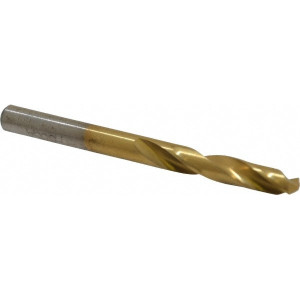

Chicago-Latrobe #8 135° Spiral Flute High Speed Steel Screw Machine Drill Bit TiN Finish, Right Hand Cut, 1-3/16" Flute Length, 2-1/4" OAL, Split Point, Straight Shank 48378 - 06131916
Brand: Chicago-Latrobe- SKU:
- 06131916
- ID:
- 733292
$6.05
Chicago-Latrobe #8 135° Spiral Flute High Speed Steel Screw Machine Drill Bit TiN Finish, Right Hand Cut, 1-3/16" Flute Length, 2-1/4" OAL, Split Point, Straight Shank
Manufacturer Part #: 48378
S/N: 06131916
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #8 |
| Drill Bit Size (Decimal Inch) | 0.1990 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Steel |
| Overall Length (Inch) | 2-1/4 |
| Series | 2159 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Tool Performance | Heavy-Duty |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Standards | ISO |
| Flute Length (Inch) | 1-3/16 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Number | NAS 907 |
| Specification Designation | NAS |
