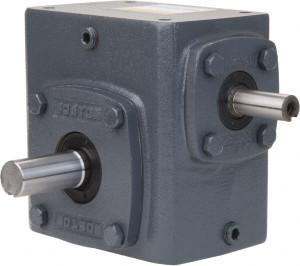

Boston Gear 1.33 Centerline Distance, 10:1, 175 RPM Output, 0.86 Input Horsepower, 281 Lbs. Max Torque, Speed Reducer Single Shaft Left 51609 - 06384101

Boston Gear 1.33 Centerline Distance, 10:1, 175 RPM Output, 0.86 Input Horsepower, 281 Lbs. Max Torque, Speed Reducer Single Shaft Left 51609 - 06384101

Brand:   Boston Gear
SKU:
06384101
ID:
558590
callling
$876.66
Current Stock:
Adding to cart… The item has been added

Boston Gear

Boston Gear 1.33 Centerline Distance, 10:1, 175 RPM Output, 0.86 Input Horsepower, 281 Lbs. Max Torque, Speed Reducer Single Shaft Left

Manufacturer Part #: 51609

S/N: 06384101

UNSPSC: 26111500

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance1.3300
Reducer TypeQuill
Shaft TypeSingle
Ratio101
Shaft OrientationRight Angle
Center-to-center Shaft Distance1.3300in
Speed Ratio101
Maximum Input Horsepower0.86
Maximum Output Speed175.0RPM
Maximum Torque (In/Lb.)281.0
Bore Diameter (Decimal Inch)0.6250
Shaft Diameter (Decimal Inch)0.6250
Gear TypeWorm
Housing MaterialCast Iron
Overall Width (Decimal Inch - 4 Decimals)6.0300
StandardsISO 90012015
Base TypePROJ
Output RPM at 1750 Input175.0
Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750160
Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750107
Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750240
