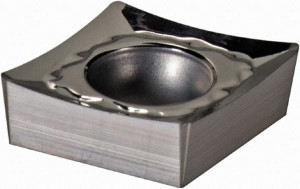

Iscar CCGT60204-AS IC20 Carbide Turning Insert Uncoated, 6.4mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn 5599989 - 06416499
Brand: Iscar- SKU:
- 06416499
- ID:
- 670023
$22.00
Iscar CCGT60204-AS IC20 Carbide Turning Insert Uncoated, 6.4mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5599989
S/N: 06416499
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC20 |
| Coating/Finish | Uncoated |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.79 |
| Maximum Depth of Cut (mm) | 2.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (mm) | 6.40 |
| Insert Length (Decimal Inch) | 0.2520 |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | CCGT060204 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | CCGT 2-1-AS |
| Chip Breaker | AS |
| Multi-Use Tool | Yes |
| Insert Size Code | 60204 |
