Made in USA 3/8" Inlet, 1/4" Outlet Manifold 9.38" Long x 1-1/4" Wide x 1-1/4" High, 0.2" Mount Hole, 2 Inlet Ports, 10 Outlet Ports PCM20-250-10B - 06430037
Brand: Made in USA- SKU:
- 06430037
- ID:
- 523135
$54.37

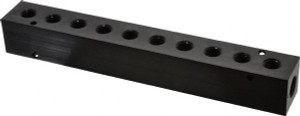

Made in USA 3/8" Inlet, 1/4" Outlet Manifold 9.38" Long x 1-1/4" Wide x 1-1/4" High, 0.2" Mount Hole, 2 Inlet Ports, 10 Outlet Ports
Manufacturer Part #: PCM20-250-10B
S/N: 06430037
UNSPSC: 40141734
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Inlet Size | 3/8 in | |
| Outlet Size | 1/4 in | |
| Number of Inlet Ports | 2 | |
| Number Of Outlet Ports | 10 | |
| Outlet Center to Center Distance | 0.8800 | |
| Overall Length (Decimal Inch) | 9.3800 | |
| Height (Inch) | 1-1/4 | |
| Body Material | Aluminum | |
| Color | Black | |
| Finish | Anodized | |
| Number of Ports | 10 | |
| Thread Type | NPT | |
| Additional Information | Pressure Rating Air | 1000 psi |
| Pressure Rating Hydraulic | 3000 psi | |
| Minimum Temperature (Deg F - 3 Decimals) | -10 | |
| Maximum Pressure (Psi - 2 Decimals) | 3000 | |
| Width (Decimal Inch - 4 Decimals) | 1.2500 | |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2000 | |
| Height (Decimal Inch) | 1.2500 | |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
