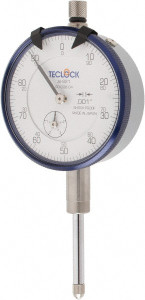

Teclock Dial Drop Indicator: 1" Range, 0-100 Dial Reading, 0.001" Graduation, 2-11/64" Dial Dia 0.1" per Revolution, Vertical Lug Back, 0.001400" Accuracy, Revolution Counter AI-921 - 06450076
Brand: Teclock- SKU:
- 06450076
- ID:
- 794169
$59.40
Teclock Dial Drop Indicator: 1" Range, 0-100 Dial Reading, 0.001" Graduation, 2-11/64" Dial Dia 0.1" per Revolution, Vertical Lug Back, 0.001400" Accuracy, Revolution Counter
Manufacturer Part #: AI-921
S/N: 06450076
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Accuracy (Decimal Inch) | 0.001400 |
| Back Type | Vertical Lug |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (Inch) | 1 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 0-100 |
| Measuring Force (gf) | 220.00 |
| Measuring Force (N) | 2.20 |
| Dial Diameter (Decimal Inch) | 2.1719 |
| Dial Diameter (Inch) | 2-11/64 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Stem Length (Decimal Inch ) | 0.7000 |
| Overall Length (Decimal Inch) | 4.6400 |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Features | Shockproof |
| AGDGpNo | 2 |
| Range Per Revolution (Decimal Inch) | 0.1000 |
| Unit of Measure | English |
