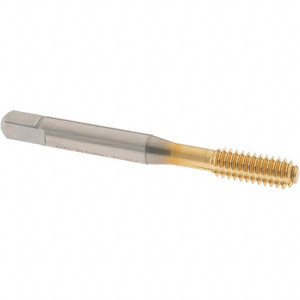

OSG Thread Forming Tap: 1/4-20 UNC, Bottoming, Cobalt, TiN Coated 1" Thread Length, H5, Series HY-PRO NRT 1400125605 - 06533020

OSG Thread Forming Tap: 1/4-20 UNC, Bottoming, Cobalt, TiN Coated 1" Thread Length, H5, Series HY-PRO NRT 1400125605 - 06533020

Brand:   OSG USA, INC.
SKU:
06533020
ID:
782446
callling
$25.08
Current Stock:
Adding to cart… The item has been added

OSG USA, INC.

OSG Thread Forming Tap: 1/4-20 UNC, Bottoming, Cobalt, TiN Coated 1" Thread Length, H5, Series HY-PRO NRT

Manufacturer Part #: 1400125605

S/N: 06533020

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Thread Size (Inch)1/4-20
Thread StandardUNC
ChamferBottoming
Chamfered Threads1-1.5P
MaterialCobalt
Coating/FinishTiN
Coolant ThroughNo
Thread LimitH5
Overall Length (Inch)2-3/8
Overall Length (Decimal Inch)2.5000
Thread DirectionRight Hand
Thread Length (Decimal Inch)0.5940
Shank Diameter (Decimal Inch)0.2550
Square Length (Decimal Inch)0.3125
Material ApplicationAlloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel
ApplicationBlind Hole Threading
Series14001
Tapping Depth (Decimal Inch)0.9330
Square Size (Decimal Inch)0.1910
Threads per Inch20
Material Application CodeP, N
Trade NameHY-PRO NRT
