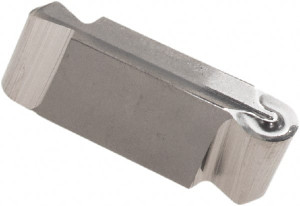

Iscar GIPA 3.00-1.50 IC20 I Carbide Grooving Insert Uncoated, Neutral, 3mm Cutting Width, 1.5mm Max Depth, Series Cut Grip 6403197 - 06690325
Brand: Iscar- SKU:
- 06690325
- ID:
- 648629
$41.24
Iscar GIPA 3.00-1.50 IC20 I Carbide Grooving Insert Uncoated, Neutral, 3mm Cutting Width, 1.5mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403197
S/N: 06690325
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GIPA |
| Insert Size Code | 300150 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC20 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 300150 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Overall Length (mm) | 15.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | A |
| Gage Diameter (Decimal Inch) | 6.2992 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Coating/Finish | Uncoated |
| Single Or Double End | Double |
| Product Service Code | 3411 |
