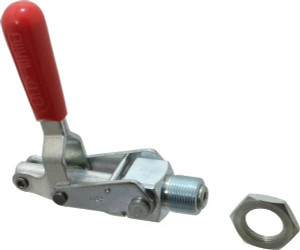

Destaco 700 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp 0.62" Plunger Diam, Straight Handle 624 - 06966253
Brand: Destaco- SKU:
- 06966253
- ID:
- 441841
$67.61
Destaco 700 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp 0.62" Plunger Diam, Straight Handle
Manufacturer Part #: 624
S/N: 06966253
UNSPSC: 27112100
UPC: 697437562401
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Load Capacity (Lb. - 3 Decimals) | 700.00 | ||
| Load Capacity (N) | 3113.76 | ||
| Load Capacity | 3113.76N, 700lb | ||
| Plunger Travel (Decimal Inch) | 2.6300 | ||
| Plunger Travel | 2.63in, 66.8mm | ||
| Plunger Travel (mm) | 66.80 | ||
| Plunger Shape | Round | ||
| Plunger Thread Style | Internal | ||
| Plunger Thread Size | 3/8-16 | ||
| Plunger Diameter (mm) | 15.75 | ||
| Plunger Diameter (Decimal Inch) | 0.6200 | ||
| Base Style | Mounting Plate | ||
| Handle Style | Straight | ||
| Clamp Material | Carbon Steel | ||
| Material | Carbon Steel | ||
| Overall Length (Decimal Inch) | 6.6800 | ||
| Overall Length (mm) | 169.67 | ||
| Overall Height (Mm - 5 Decimals) | 142.24 | ||
| Overall Height (Decimal Inch) | 5.6000 | ||
| Base Length (Decimal Inch) | 3.0000 | ||
| Base Width (Inch) | 1.5000 | ||
| Handle Color | Red | ||
| Jam Nut Height (Decimal Inch) | 0.2500 | ||
| Jam Nut Height (mm) | 6.35 | ||
| Jam Nut Hex Size (Decimal Inch) | 1.5000 | ||
| Jam Nut Thread Size | 1-14 | ||
| Maximum Mechanical Advantage | 21 | 1 (Pulling), 49 | 1 (Pushing) |
| Includes | Jam Nut | ||
| Industry Number | 624 | ||
| UNSPSC Code | 27112100 | ||
| Front Of Base To Tip Of Toggle Bar | 3.6300 |
