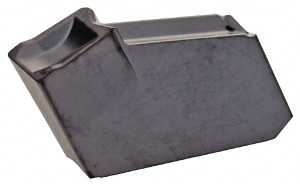

Iscar GSFN 3.2 IC908 Carbide Milling Insert TiAlN Finish, 0.126" Wide 6002842 - 07140601
Brand: Iscar- SKU:
- 07140601
- ID:
- 660016
$23.10
Iscar GSFN 3.2 IC908 Carbide Milling Insert TiAlN Finish, 0.126" Wide
Manufacturer Part #: 6002842
S/N: 07140601
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GSFN |
| Insert Size | 3.2 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0087 |
| Corner Radius (mm) | 0.22 |
| Number Of Cutting Edges | 1 |
| Coating/Finish | TiAlN |
| Relief Angle | 7.00 |
| Insert Size Code | 3.2 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.1260 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Neutral |
| Series | Self Grip |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1260 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Secondary Workpiece Material Code | H, S |
| Ansi Code | GSFN 3.2 IC908 |
| Iso Code | GSFN 3.2 |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | GSFN 3.2 IC908 |
| Cutter Series Compatibility | SGSF |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Self Grip |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.1260 |
| Multi-Use Tool | Yes |
