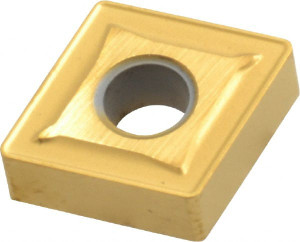

Value Collection CNMG432 TCN55 Carbide Turning Insert TiN Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series KENLOC 40176 - 07182173
Brand: Value Collection- SKU:
- 07182173
- ID:
- 678237
$13.53
Value Collection CNMG432 TCN55 Carbide Turning Insert TiN Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series KENLOC
Manufacturer Part #: 40176
S/N: 07182173
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | CNMG432 |
| ISO Insert Code | CNMG120408 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 80 |
| Manufacturer Grade | TCN55 |
| Coating/Finish | TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Primary Workpiece Material Code | M, P |
| Material Grade | C5 |
| Chip Breaker | G |
| ANSI Size Code | 432 |
| ISO Size Code | 120408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
