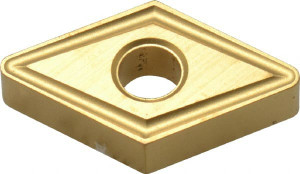

Value Collection DNMG433 TCN55 Carbide Turning Insert 1/2" Inscribed Circle, 3/64" Corner Radius, 55° Diamond, Series KENLOC 40516 - 07182330
Brand: Value Collection- SKU:
- 07182330
- ID:
- 678240
$26.93
Value Collection DNMG433 TCN55 Carbide Turning Insert 1/2" Inscribed Circle, 3/64" Corner Radius, 55° Diamond, Series KENLOC
Manufacturer Part #: 40516
S/N: 07182330
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | DNMG433 |
| ISO Insert Code | DNMG150412 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 55 |
| Manufacturer Grade | TCN55 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | M, P |
| Material Grade | C5 |
| Chip Breaker | G |
| ANSI Size Code | 433 |
| ISO Size Code | 150412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
