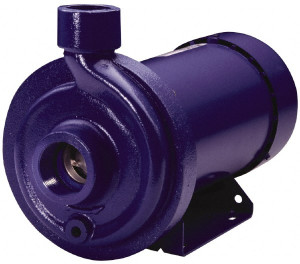

Goulds Water Technology 208-230/460 Volt 9.0/4.5 Amp 3 hp 3 Phase ODP Cast Iron AC Straight Pump 1-1/4" Inlet x 1" Outlet, 62 Max Head psi, Carbon Ceramic Buna Seal 1MC1H2A0 - 07208036
Brand: Goulds Water Technology- SKU:
- 07208036
- ID:
- 550784
$5,379.50
Goulds Water Technology 208-230/460 Volt 9.0/4.5 Amp 3 hp 3 Phase ODP Cast Iron AC Straight Pump 1-1/4" Inlet x 1" Outlet, 62 Max Head psi, Carbon Ceramic Buna Seal
Manufacturer Part #: 1MC1H2A0
S/N: 07208036
UNSPSC: 40151500
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Current Type | AC |
| Input Voltage | 208-230/460V |
| Amperage Rating | 9.0/4.5 |
| Phase | Three |
| End Connections | FPT x FPT |
| Horsepower | 3 |
| Motor Type | ODP |
| Inlet Size (Inch) | 1-1/4 |
| Outlet Size (Inch) | 1 |
| Maximum Flow Rate (Gpm - 2 Decimals) | 63 |
| Maximum Head Pressure (psi) | 62.0 |
| Housing Material | Cast Iron |
| Impeller Material | 316L Stainless Steel |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon-Ceramic |
| Seal Type | Mechanical |
| Shut-off Feet | 142.00 |
| Frequency (Hz - 0 Decimals) | 60 |
| GPM @ 60 Feet of Head | 63.0 |
| GPM @ 70 Feet of Head | 59.0 |
| GPM @ 80 Feet of Head | 55.0 |
| GPM @ 90 Feet of Head | 51.0 |
| GPM @ 100 Feet of Head | 46.0 |
| GPM @ 110 Feet of Head | 40.0 |
| GPM @ 120 Feet of Head | 34.0 |
| RPM | 3500 |
| GPM @ 130 Feet of Head | 26.0 |
| Thread Type | NPT |
| Maximum Temperature (F) ( - 0 Decimals) | 212 |
