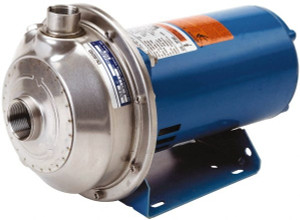

Goulds Water Technology 208-230/460 Volt 2.6/1.3 Amp 1/2 hp 3 Phase TEFC 316L Stainless Steel AC Straight Pump 1-1/4" Inlet x 1" Outlet, 32 Max Head psi, Carbon Ceramic Buna Seal 100MS1C5E0 - 07209513
Brand: Goulds Water Technology- SKU:
- 07209513
- ID:
- 550782
$1,872.55
Goulds Water Technology 208-230/460 Volt 2.6/1.3 Amp 1/2 hp 3 Phase TEFC 316L Stainless Steel AC Straight Pump 1-1/4" Inlet x 1" Outlet, 32 Max Head psi, Carbon Ceramic Buna Seal
Manufacturer Part #: 100MS1C5E0
S/N: 07209513
UNSPSC: 40151500
UPC: 697666261731
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Current Type | AC |
| Input Voltage | 208-230/460V |
| Amperage Rating | 2.6/1.3 |
| Phase | Three |
| End Connections | FPT x FPT |
| Horsepower | 1/2 |
| Motor Type | TEFC |
| Inlet Size (Inch) | 1-1/4 |
| Outlet Size (Inch) | 1 |
| Maximum Flow Rate (Gpm - 2 Decimals) | 37 |
| Maximum Head Pressure (psi) | 32.0 |
| Housing Material | 316L Stainless Steel |
| Impeller Material | 316L Stainless Steel |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon-Ceramic |
| Seal Type | Mechanical |
| Shut-off Feet | 75.00 |
| Frequency (Hz - 0 Decimals) | 60 |
| GPM @ 40 Feet of Head | 37.0 |
| GPM @ 50 Feet of Head | 31.0 |
| GPM @ 60 Feet of Head | 23.0 |
| GPM @ 70 Feet of Head | 13.0 |
| RPM | 3500 |
| Thread Type | NPT |
| Maximum Temperature (F) ( - 0 Decimals) | 212 |
