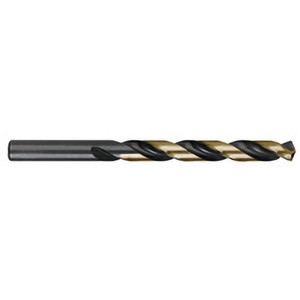

Titan USA Jobber Length Drill Bits, Drill Bit Size (Inch): 5/64, Drill Bit Size (Decimal Inch): 0.0781, Drill Point Angle: 135, Drill Bit Material: High Speed Steel, Uncoated, Cutting Direction: Right Hand CD44505 - 07227077
Brand: Titan USA- SKU:
- 07227077
- ID:
- 728055
$1.95
Titan USA Jobber Length Drill Bits, Drill Bit Size (Inch): 5/64, Drill Bit Size (Decimal Inch): 0.0781, Drill Point Angle: 135, Drill Bit Material: High Speed Steel, Drill Bit Finish/Coating: Uncoated, Cutting Direction: Right Hand
Manufacturer Part #: CD44505
S/N: 07227077
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 5/64 |
| Drill Bit Size (Decimal Inch) | 0.0781 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Black Oxide, Oxide, Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1 |
| Primary Workpiece Material Code | P, M, K, N, S |
| Shank Diameter (Decimal Inch) | 0.0781 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 1.0000 |
| Series | CD44 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 13xD |
| Shank Diameter (Inch) | 5/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Maximum Drilling Depth (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000in |
| Shank Length (Inch) | 1 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | -0.0005 to +0.0000 |
| Shank Type | Straight-Cylindrical |
| Double Margin | No |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| UNSPSC Code | 23241634 |
