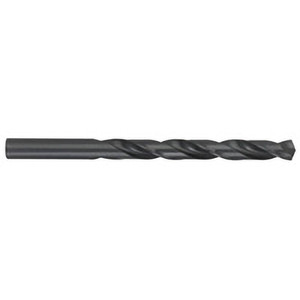

Titan USA Jobber Length Drill Bits, Drill Bit Size (Wire): #28, Drill Bit Size (Decimal Inch): 0.1405, Drill Point Angle: 135, Drill Bit Material: High Speed Steel, Drill Bit Finish/Coating: Uncoated, Cutting Direction: Right Hand CD44228 - 07229420
Brand: Titan USA- SKU:
- 07229420
- ID:
- 728067
$2.60
Titan USA Jobber Length Drill Bits, Drill Bit Size (Wire): #28, Drill Bit Size (Decimal Inch): 0.1405, Drill Point Angle: 135, Drill Bit Material: High Speed Steel, Drill Bit Finish/Coating: Uncoated, Cutting Direction: Right Hand
Manufacturer Part #: CD44228
S/N: 07229420
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Wire) | #28 |
| Drill Bit Size (Decimal Inch) | 0.1405 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Black/Gold |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-3/4 |
| Primary Workpiece Material Code | P, M, K, N, S |
| Shank Diameter (Decimal Inch) | 0.1405 |
| Overall Length (Inch) | 2-7/8 |
| Overall Length (Decimal Inch) | 2.875 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 1.7500 |
| Series | CD44 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 12xD |
| Shank Diameter (Inch) | 9/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.75 |
| Maximum Drilling Depth (Inch) | 1-3/4 |
| Shank Length (Decimal Inch) | 1.1250 |
| Shank Length (Inch) | 1-1/8 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | -0.0007 to +0.0000 |
| Shank Type | Straight |
| Double Margin | No |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| UNSPSC Code | 23241634 |
