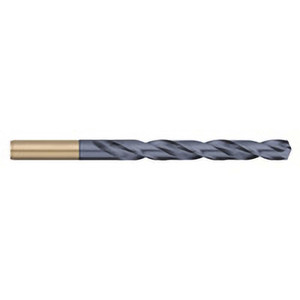

Titan USA Jobber Length Drill Bits, Drill Bit Size (Inch): 1/16, Drill Bit Size (Decimal Inch): 0.0625, Drill Point Angle: 135, Drill Bit Material: Cobalt, Drill Bit Finish/Coating: AlTiN, Cutting Direction: Right Hand CD60704 - 07238389
Brand: Titan USA- SKU:
- 07238389
- ID:
- 728084
$5.18
Titan USA Jobber Length Drill Bits, Drill Bit Size (Inch): 1/16, Drill Bit Size (Decimal Inch): 0.0625, Drill Point Angle: 135, Drill Bit Material: Cobalt, Drill Bit Finish/Coating: AlTiN, Cutting Direction: Right Hand
Manufacturer Part #: CD60704
S/N: 07238389
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | ALTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 7/8 |
| Primary Workpiece Material Code | P, M, K, S |
| Shank Diameter (Decimal Inch) | 0.0625 |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (Decimal Inch) | 1.875 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 0.8750 |
| Series | CD60 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 14xD |
| Shank Diameter (Inch) | 1/16 |
| Maximum Drilling Depth (Decimal Inch) | 0.8750 |
| Maximum Drilling Depth (Inch) | 7/8 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 1 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | -0.0005 to +0.0000 |
| Shank Type | Straight-Cylindrical |
| Double Margin | No |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| UNSPSC Code | 23241634 |
