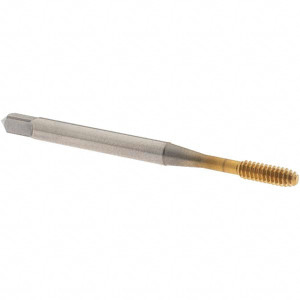

OSG Thread Forming Tap: #4-40 UNC, Modified Bottoming, Cobalt, TiN Coated H3, Series HY-PRO NRT 1400105305 - 07462518
Brand: OSG USA, INC.- SKU:
- 07462518
- ID:
- 782129
$25.72
OSG Thread Forming Tap: #4-40 UNC, Modified Bottoming, Cobalt, TiN Coated H3, Series HY-PRO NRT
Manufacturer Part #: 1400105305
S/N: 07462518
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #4-40 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-2.5P |
| Material | Cobalt |
| Coating/Finish | TiN |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | H3 |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (Decimal Inch) | 1.8750 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.2950 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Decimal Inch) | 0.1875 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14001 |
| Tapping Depth (Decimal Inch) | 0.5590 |
| Square Size (Decimal Inch) | 0.1100 |
| Threads per Inch | 40 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
