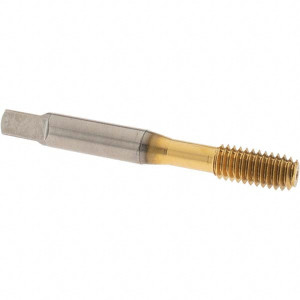

OSG Thread Forming Tap: 5/16-18 UNC, Modified Bottoming, Cobalt, TiN Coated H5, Series HY-PRO NRT 1400130705 - 07462690
Brand: OSG USA, INC.- SKU:
- 07462690
- ID:
- 782712
$31.55
OSG Thread Forming Tap: 5/16-18 UNC, Modified Bottoming, Cobalt, TiN Coated H5, Series HY-PRO NRT
Manufacturer Part #: 1400130705
S/N: 07462690
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 5/16-18 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-2.5P |
| Material | Cobalt |
| Coating/Finish | TiN |
| Coolant Through | No |
| Thread Limit | H5 |
| Overall Length (Inch) | 2-32/32 |
| Overall Length (Decimal Inch) | 2.7190 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6654 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Decimal Inch) | 0.3750 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14001 |
| Tapping Depth (Decimal Inch) | 1.1260 |
| Square Size (Decimal Inch) | 0.2380 |
| Threads per Inch | 18 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
