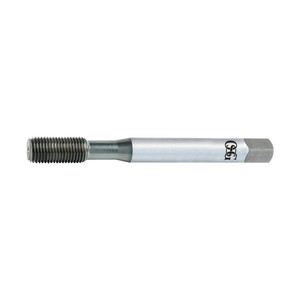

OSG Thread Forming Tap: 1/2-13 UNC, Plug, Cobalt, TiN Coated H5, Series HY-PRO NRT 1400143705 - 07464399
Brand: OSG USA, INC.- SKU:
- 07464399
- ID:
- 782400
$61.88
OSG Thread Forming Tap: 1/2-13 UNC, Plug, Cobalt, TiN Coated H5, Series HY-PRO NRT
Manufacturer Part #: 1400143705
S/N: 07464399
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Chamfered Threads | 4-4.5P |
| Material | Cobalt |
| Coating/Finish | TiN |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | H5 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.9213 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (Decimal Inch) | 0.4375 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Through-Hole Threading |
| Series | 14001 |
| Tapping Depth (Decimal Inch) | 1.9330 |
| Square Size (Decimal Inch) | 0.2750 |
| Threads per Inch | 13 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
| UNSPSC Code | 27112806 |
