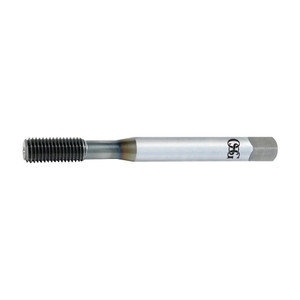

OSG Thread Forming Tap: 5/16-24 UNF, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated H5, Series EXOTAP NRT 1405010008 - 07471659

OSG Thread Forming Tap: 5/16-24 UNF, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated H5, Series EXOTAP NRT 1405010008 - 07471659

Brand:   OSG USA, INC.
SKU:
07471659
ID:
782761
callling
$66.06
Current Stock:
Adding to cart… The item has been added

OSG USA, INC.

OSG Thread Forming Tap: 5/16-24 UNF, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated H5, Series EXOTAP NRT

Manufacturer Part #: 1405010008

S/N: 07471659

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Thread Size (Inch)5/16-24
Thread StandardUNF
ChamferModified Bottoming
Chamfered Threads2-2.5P
MaterialPowdered Metal High-Speed Steel
Coating/FinishV
Coolant ThroughNo
Class Of Fit3B
Thread LimitH5
Overall Length (Inch)2-23/32
Overall Length (Decimal Inch)2.7190
Thread DirectionRight Hand
Thread Length (Decimal Inch)0.6654
Shank Diameter (Decimal Inch)0.3180
Square Length (Decimal Inch)0.3750
Material ApplicationAlloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel
ApplicationBlind Hole Threading
Series14050
Tapping Depth (Decimal Inch)1.1260
Square Size (Decimal Inch)0.2380
Threads per Inch24
Material Application CodeP, M, N
Trade NameEXOTAP VP-NRT
