Associated Spring Raymond 2" Hole Diam, 1" Rod Diam, 6" Free Length, Red Die Spring 1047.8 Lb Max Deflection, 2.22" Max Deflection, Medium Heavy Duty, Chromium Alloy Steel 104-824 - 07662224
Brand: Associated Spring Raymond- SKU:
- 07662224
- ID:
- 443595
$96.57

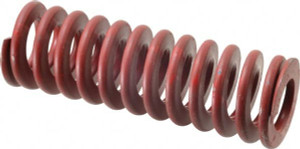

Associated Spring Raymond 2" Hole Diam, 1" Rod Diam, 6" Free Length, Red Die Spring 1047.8 Lb Max Deflection, 2.22" Max Deflection, Medium Heavy Duty, Chromium Alloy Steel
Manufacturer Part #: 104-824
S/N: 07662224
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Inch) | 2 | ||
| Hole Diameter (Decimal Inch) | 2.0000 | ||
| Free Length (Inch) | 6 | ||
| Color | Red | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (Decimal Inch) | 1.0000 | ||
| Maximum Deflection Load (Lb.) | 1047.80 | ||
| Maximum Deflection (Decimal Inch) | 2.2200 | ||
| Spring Rate | 450.00 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
