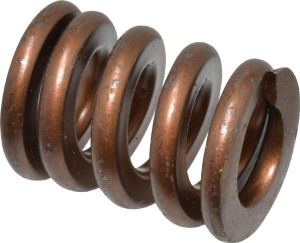

Associated Spring Raymond 1" Hole Diam, 1/2" Rod Diam, 1-1/4" Free Length, Gold Die Spring 642 Lb Max Deflection, 0.38" Max Deflection, Heavy Duty, Chromium Alloy Steel 105-505 - 07662695
Brand: Associated Spring Raymond- SKU:
- 07662695
- ID:
- 443642
$11.54
Associated Spring Raymond 1" Hole Diam, 1/2" Rod Diam, 1-1/4" Free Length, Gold Die Spring 642 Lb Max Deflection, 0.38" Max Deflection, Heavy Duty, Chromium Alloy Steel
Manufacturer Part #: 105-505
S/N: 07662695
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Inch) | 1 | ||
| Hole Diameter (Decimal Inch) | 1.0000 | ||
| Free Length (Inch) | 1-1/4 | ||
| Color | Gold | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Maximum Deflection Load (Lb.) | 642.00 | ||
| Maximum Deflection (Decimal Inch) | 0.3800 | ||
| Spring Rate | 1465.00 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
