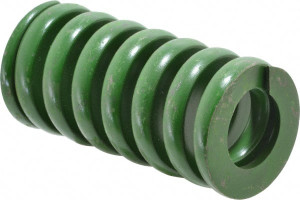

Associated Spring Raymond 2" Hole Diam, 1" Rod Diam, 4" Free Length, Green Die Spring 2200 Lb Max Deflection, 1" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel 106-816 - 07664006
Brand: Associated Spring Raymond- SKU:
- 07664006
- ID:
- 443772
$68.52
Associated Spring Raymond 2" Hole Diam, 1" Rod Diam, 4" Free Length, Green Die Spring 2200 Lb Max Deflection, 1" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Manufacturer Part #: 106-816
S/N: 07664006
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Inch) | 2 | ||
| Hole Diameter (Decimal Inch) | 2.0000 | ||
| Free Length (Inch) | 4 | ||
| Color | Green | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (Decimal Inch) | 1.0000 | ||
| Maximum Deflection Load (Lb.) | 2200.00 | ||
| Maximum Deflection (Decimal Inch) | 1.0000 | ||
| Spring Rate | 2311.00 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
