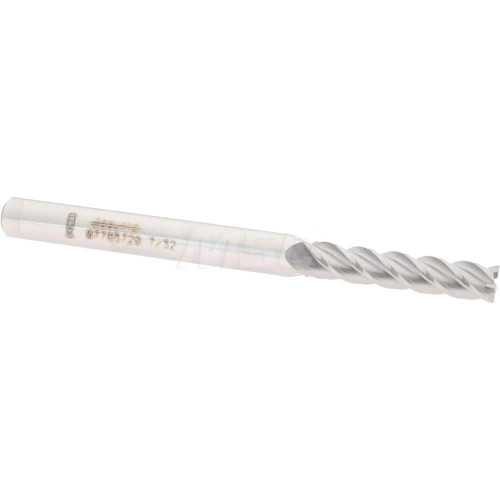

Accupro 7/32", 1" LOC, 1/4" Shank Diam, 3" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute 12183399 - 07765720
Brand: Accupro- SKU:
- 07765720
- ID:
- 626127
$33.32
Accupro 7/32", 1" LOC, 1/4" Shank Diam, 3" OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 40° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 12183399
S/N: 07765720
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.2188 |
| Mill Diameter (Inch) | 7/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 40 |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Extra Long |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
