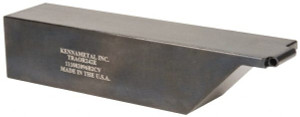

Kennametal RH TRAO 0° Neutral Rake Indexable Turning Toolholder 1-1/2" x 1-1/2" Shank, Takes RC..23 Inserts 1104600 - 07920879
Brand: Kennametal- SKU:
- 07920879
- ID:
- 687171
$244.63
Kennametal RH TRAO 0° Neutral Rake Indexable Turning Toolholder 1-1/2" x 1-1/2" Shank, Takes RC..23 Inserts
Manufacturer Part #: 1104600
S/N: 07920879
UNSPSC: 23153308
UPC: 634925256077
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | TRAO |
| Hand of Holder | Right Hand |
| Insert Compatibility | RC..23 |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1-1/2 |
| Shank Height (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Height (mm) | 38.10 |
| Overall Length (mm) | 177.80 |
| Coolant Through | No |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Decimal Inch) | 1.5000 |
| Series | K-Lock |
| Overall Length (Inch) | 7 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5160 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility | RC.. 23.. |
| Coating Classification | Kennametal |
| Manufacturers Catalog Number | TRAOR242E |
