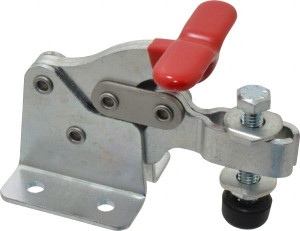

Destaco 750 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 168° Handle Movement, 90° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel 309-U - 08096331
Brand: Destaco- SKU:
- 08096331
- ID:
- 441381
$58.65
Destaco 750 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 168° Handle Movement, 90° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 309-U
S/N: 08096331
UNSPSC: 31162902
UPC: 697437530905
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal | |
| Bar Style | U-Bar | |
| Base Style | Flanged | |
| Bar End Type | Fixed Spindle | |
| Holding Capacity (N) | 3335.00 | |
| Holding Capacity (Lb.) | 750.00 | |
| Length Distance Between Mount Holes (mm) | 35.05 | |
| Length Distance Between Mount Holes | 1.38in, 35.05mm | |
| Length Distance Between Mount Holes (Inch) | 1.38 | |
| Width Distance Between Mount Holes (mm) | 38.10 | |
| Width Distance Between Mount Holes | 1.5in, 38.1mm | |
| Width Distance Between Mount Holes (Decimal Inch) | 1.5000 | |
| Height Under Bar (Decimal Inch) | 1.3100 | |
| Height Under Bar (mm) | 33.27 | |
| Overall Length (mm) | 131.83 | |
| Overall Length (Decimal Inch) | 5.1900 | |
| Overall Height (Decimal Inch) | 3.5300 | |
| Overall Height (Mm - 5 Decimals) | 89.66 | |
| Base Length (mm) | 64.01 | |
| Base Width (Inch) | 2.4700 | |
| Base Width | 62.74 | |
| Handle Style | T-Handle | |
| Material | Carbon Steel | |
| Handle Material | Carbon Steel | |
| Handle Color | Red | |
| Mounting Hole Diameter (mm) | 8.38 | |
| Mounting Hole Diameter (Decimal Inch) | 0.3300 | |
| Bar Opening (Degrees) | 90 | |
| Handle Movement (Degrees) | 168 | |
| Maximum Mechanical Advantage | 04 | 01 |
| Spindle Thread Size | 3/8-16 | |
| Spindle Length (Decimal Inch) | 2.2500 | |
| Spindle Travel (Inch) | 1.0600 | |
| Spindle Travel (mm) | 26.92 | |
| Bar Width (Inch) | 3/4 | |
| Bar Width (mm) | 19.05 | |
| Bar Width (Decimal Inch) | 0.7500 | |
| UNSPSC Code | 31162902 | |
| Handle Width (Decimal Inch) | 2.7800 | |
| Front Of Base To Toggle Tip | 2.68in | |
| Includes | (1) Spindle, (2) Nuts, (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.6800 | |
| Front of Base To Tip Of Toggle Bar (mm) | 68.07 | |
| Number Of Mounting Holes | 4 | |
| Finish Coating | Zinc |
