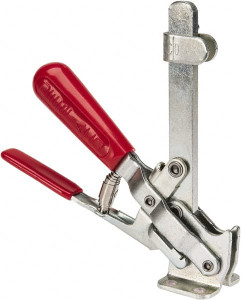

Destaco 500 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 57° Handle Movement, 99° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel 207-LR - 08103806
Brand: Destaco- SKU:
- 08103806
- ID:
- 441387
$79.88
Destaco 500 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 57° Handle Movement, 99° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 207-LR
S/N: 08103806
UNSPSC: 31162902
UPC: 697437520715
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical | ||
| Bar Style | Solid | ||
| Base Style | Flanged | ||
| Bar End Type | Closed | ||
| Holding Capacity (N) | 2220.00 | ||
| Holding Capacity (Lb.) | 500.00 | ||
| Length Distance Between Mount Holes (mm) | 19.05 | ||
| Length Distance Between Mount Holes | 0.75in, 19.05mm | ||
| Length Distance Between Mount Holes (Inch) | 0.75 | ||
| Width Distance Between Mount Holes (mm) | 31.75 | ||
| Width Distance Between Mount Holes | 1.25in, 31.75mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 | ||
| Height Under Bar (Decimal Inch) | 1.2500 | ||
| Height Under Bar (mm) | 31.75 | ||
| Overall Length (Decimal Inch) | 4.5000 | ||
| Overall Height (Decimal Inch) | 6.9300 | ||
| Overall Height (Mm - 5 Decimals) | 176.02 | ||
| Base Length (mm) | 35.05 | ||
| Base Width (Inch) | 1.7300 | ||
| Base Width | 43.94 | ||
| Handle Style | Straight | ||
| Material | Carbon Steel | ||
| Handle Material | Carbon Steel | ||
| Handle Color | Red | ||
| Spindle Included | Yes | ||
| Mounting Hole Diameter (mm) | 7.11 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.2800 | ||
| Bar Opening (Degrees) | 99 | ||
| Handle Movement (Degrees) | 57 | ||
| Maximum Mechanical Advantage | 05 | 01, 10 | 01 |
| Bar Width (mm) | 16.00 | ||
| Bar Width (Decimal Inch) | 0.6300 | ||
| Bar Thickness (mm) | 6.10 | ||
| UNSPSC Code | 31162902 | ||
| Bar Thickness (Decimal Inch) | 0.2400 | ||
| Front Of Base To Toggle Tip | 3.48in | ||
| Includes | Bolt Retainer, Toggle Lock Plus | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.4800 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 88.39 | ||
| Industry Number | 207-LR | ||
| Number Of Mounting Holes | 4 | ||
| Finish Coating | Zinc |
