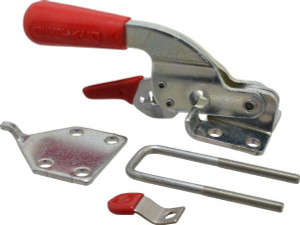

Destaco 720 Lb Capacity, Horizontal, U Hook, Flanged Base, Carbon Steel Pull Action Latch Clamp 1-3/4" Drawing Movement, 6.07" OAL, Threaded U Hook, Straight Handle 331-R - 08103855
Brand: Destaco- SKU:
- 08103855
- ID:
- 441753
$55.28
Destaco 720 Lb Capacity, Horizontal, U Hook, Flanged Base, Carbon Steel Pull Action Latch Clamp 1-3/4" Drawing Movement, 6.07" OAL, Threaded U Hook, Straight Handle
Manufacturer Part #: 331-R
S/N: 08103855
UNSPSC: 31380000
UPC: 697437533111
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Clamping Orientation | Horizontal |
| Bar Style | U-Hook |
| Load Capacity (N) | 3202.72 |
| Load Capacity (Lb. - 3 Decimals) | 720.00 |
| Load Capacity | 3202.72N, 720lb |
| Base Style | Flanged |
| Material | Carbon Steel |
| Body Material | Carbon Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 6.0700 |
| Overall Length (mm) | 154.18 |
| Overall Height (Mm - 5 Decimals) | 51.05 |
| Overall Height (Decimal Inch) | 2.0100 |
| Drawing Movement (mm) | 44.45 |
| Drawing Movement (Decimal Inch) | 1.7500 |
| Handle Color | Red |
| Base Length | 1.56 |
| Base Length (mm) | 39.62 |
| Base Width (Inch) | 1.7400 |
| Base Width | 44.20 |
| Mounting Hole Diameter (mm) | 6.86 |
| Mounting Hole Diameter | 0.2700 |
| Width Distance Between Mount Holes (Inch) | 1-1/4 |
| Width Distance Between Mount Holes (mm) | 31.75 |
| Length Distance Between Mount Holes (Inch) | 3/4 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7500 |
| Length Distance Between Mount Holes (mm) | 19.05 |
| Bar Width (Decimal Inch) | 1.0000 |
| Bar Width | 1in, 25.4mm |
| Bar Thickness (Decimal Inch) | 0.1700 |
| Base to Center of Bar (mm) | 16.76 |
| Base to Center of Bar (Decimal Inch) | 0.6600 |
| Includes | Latch Plate, Patented Thumb Control Lever, Threaded U-Hook, Toggle Lock Plus |
| Industry Number | 331-R |
| Width Distance Between Mounting Holes | 1.2500 |
| UNSPSC Code | 31162900 |
