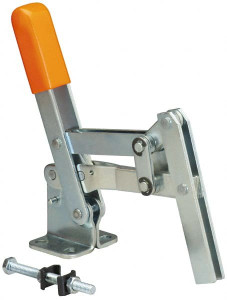

Knu-Vise 400 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 65° Handle Movement, 120° Bar Opening, U-Bar, Flanged Base, Carbon Steel DTV-400 - 08105660
Brand: Knu-Vise- SKU:
- 08105660
- ID:
- 441593
$99.28
Knu-Vise 400 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 65° Handle Movement, 120° Bar Opening, U-Bar, Flanged Base, Carbon Steel
Manufacturer Part #: DTV-400
S/N: 08105660
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (kg) | 181.44 |
| Holding Capacity (Lb.) | 400.00 |
| Length Distance Between Mount Holes (mm) | 28.58 |
| Length Distance Between Mount Holes | 1.125in |
| Length Distance Between Mount Holes (Inch) | 1.125, 1-1/8 |
| Width Distance Between Mount Holes (Inch) | 1-3/8 |
| Width Distance Between Mount Holes (mm) | 34.93 |
| Width Distance Between Mount Holes | 1.375in |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3750 |
| Height Under Bar (Decimal Inch) | 2.0000 |
| Height Under Bar (mm) | 50.80 |
| Overall Length (mm) | 158.35 |
| Overall Length (Decimal Inch) | 6.2344 |
| Overall Height (Inch) | 8-5/8 |
| Overall Height (Decimal Inch) | 8.6250 |
| Overall Height (Mm - 5 Decimals) | 219.08 |
| Base Length (Inch) | 2 |
| Base Length (mm) | 50.80 |
| Base Width (Inch) | 2.5000 |
| Base Width | 63.50 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Material | Carbon Steel |
| Handle Color | Orange |
| Mounting Hole Diameter (mm) | 7.95 |
| Mounting Hole Diameter (Decimal Inch) | 0.3130 |
| Bar Opening (Degrees) | 120 |
| Handle Movement (Degrees) | 65 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length (mm) | 219.08 |
| Spindle Length | 8-5/8 |
| Spindle Travel (Inch) | 1.8750 |
| Spindle Travel (mm) | 47.63 |
| Bar Width (Decimal Inch) | 0.6100 |
| Bar Thickness (Decimal Inch) | 2.0000 |
| Handle Width (Decimal Inch) | 0.9200 |
| Front Of Base To Toggle Tip | 3.46in |
| Includes | (2) Flanged Washers, (2) Nuts, Spindle |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.4688 |
| Front of Base To Tip Of Toggle Bar (mm) | 88.11 |
| Front of Base To Tip Of Toggle Bar (Inch) | 3-15/32 |
| Number Of Mounting Holes | 4 |
