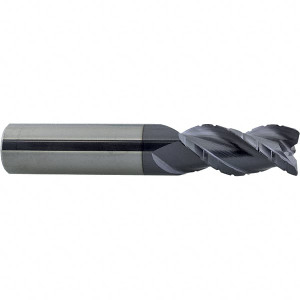

PROMAX Tools 3/8" Diam 3-Flute 40° Solid Carbide 0.02" Corner Radius Roughing & Finishing End Mill AlTiN Finish, 7/8" LOC, 2-1/2" OAL, 3/8" Shank Diam, Chipbreaker, Series 119 119-02414 - 08211971
Brand: PROMAX Tools- SKU:
- 08211971
- ID:
- 620066
$88.43
PROMAX Tools 3/8" Diam 3-Flute 40° Solid Carbide 0.02" Corner Radius Roughing & Finishing End Mill AlTiN Finish, 7/8" LOC, 2-1/2" OAL, 3/8" Shank Diam, Chipbreaker, Series 119
Manufacturer Part #: 119-02414
S/N: 08211971
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Fractional Inch) | 3/8 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 7/8 |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0200 |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Shank Type | Straight-Cylindrical |
| Chipbreaker | No |
| Helix Angle | 40 |
| Maximum Helix Angle | 40 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Series | 119 |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| UNSPSC Code | 27112803 |
