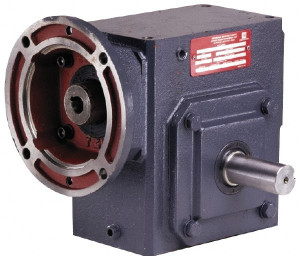

Morse 154Q56LR30 1.54 Centerline Distance, 30:1, 58 RPM Output, 3/4 Input Horsepower, 328 Lbs. Max Torque, Speed Reducer 3/4" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 5.13" Long x 3.69" Wide x 5.38" High, 56C NEMA 154Q56LR30 - 08433252
Brand: Morse- SKU:
- 08433252
- ID:
- 559251
$1,461.58
Morse 154Q56LR30 1.54 Centerline Distance, 30:1, 58 RPM Output, 3/4 Input Horsepower, 328 Lbs. Max Torque, Speed Reducer 3/4" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 5.13" Long x 3.69" Wide x 5.38" High, 56C NEMA, 200 In/Lb. Min Torque
Manufacturer Part #: 154Q56LR30
S/N: 08433252
UNSPSC: 26111500
UPC: 662288340478
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 1.5400 | |
| Reducer Type | C-Face | |
| Shaft Type | Double | |
| Ratio | 30 | 1 |
| Shaft Orientation | Left Angle | |
| Center-to-center Shaft Distance | 1.5400in | |
| Speed Ratio | 30 | 1 |
| Maximum Input Horsepower | 3/4 | |
| Nema/Iec Frame Size | 56C NEMA | |
| Maximum Input Speed | 1750.0 | |
| Minimum Torque (In/Lb) | 200.0 | |
| Maximum Torque (In/Lb.) | 328.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 0.7500 | |
| Gear Type | Worm | |
| Housing Material | Cast Iron | |
| Gear Material | Bronze | |
| Overall Length (Decimal Inch) | 4.8800 | |
| Standards | NEMA | |
| Minimum Input Horsepower | 0.25 | |
| Output RPM at 1750 Input | 58.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 328 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 264 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 328 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 200 | |
| Height (Decimal Inch) | 5.3800 | |
| Length (Decimal Inch - 4 Decimals) | 5.1300 | |
| Width (Decimal Inch - 4 Decimals) | 3.6900 | |
| UNSPSC Code | 26111500 |
