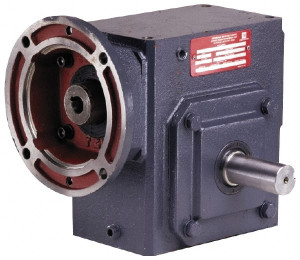

Morse 206Q56LR15 2.06 Centerline Distance, 15:1, 117 RPM Output, 3/4 Input Horsepower, 356 Lbs. Max Torque, Speed Reducer 1" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 5-1/2" Long x 3-3/4" Wide x 6.38" High, 56C NEMA 206Q56LR15 - 08433963
Brand: Morse- SKU:
- 08433963
- ID:
- 559294
$1,554.47
Morse 206Q56LR15 2.06 Centerline Distance, 15:1, 117 RPM Output, 3/4 Input Horsepower, 356 Lbs. Max Torque, Speed Reducer 1" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 5-1/2" Long x 3-3/4" Wide x 6.38" High, 56C NEMA, 118 In/Lb. Min Torque
Manufacturer Part #: 206Q56LR15
S/N: 08433963
UNSPSC: 26111500
UPC: 662288346487
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 2.0600 | |
| Shaft Type | Double | |
| Ratio | 15 | 1 |
| Maximum Input Horsepower | 3/4 | |
| Nema/Iec Frame Size | 56C NEMA | |
| Minimum Torque (In/Lb) | 118.0 | |
| Maximum Torque (In/Lb.) | 356.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 1.0000 | |
| Minimum Input Horsepower | 0.25 | |
| Output RPM at 1750 Input | 117.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 237 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 156 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 356 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 118 | |
| Height (Decimal Inch) | 6.3800 | |
| Length (Decimal Inch - 4 Decimals) | 5.5000 | |
| Width (Decimal Inch - 4 Decimals) | 3.7500 | |
| UNSPSC Code | 26111500 |
