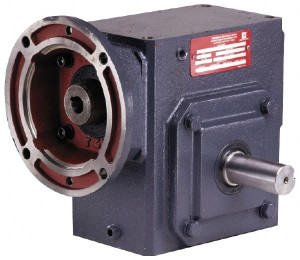

Morse 237Q56LR20 2.38 Centerline Distance, 20:1, 88 RPM Output, 3/4 Input Horsepower, 458 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 6.13" Long x 4.08" Wide x 6.94" High, 56C NEMA 237Q56LR20 - 08434409
Brand: Morse- SKU:
- 08434409
- ID:
- 559327
$2,001.55
Morse 237Q56LR20 2.38 Centerline Distance, 20:1, 88 RPM Output, 3/4 Input Horsepower, 458 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 6.13" Long x 4.08" Wide x 6.94" High, 56C NEMA, 152 In/Lb. Min Torque
Manufacturer Part #: 237Q56LR20
S/N: 08434409
UNSPSC: 26111500
UPC: 662288349549
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 2.3800 | |
| Shaft Type | Double | |
| Ratio | 20 | 1 |
| Maximum Input Horsepower | 3/4 | |
| Nema/Iec Frame Size | 56C NEMA | |
| Minimum Torque (In/Lb) | 152.0 | |
| Maximum Torque (In/Lb.) | 458.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 1.1250 | |
| Minimum Input Horsepower | 0.25 | |
| Output RPM at 1750 Input | 88.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 305 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 201 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 458 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 152 | |
| Height (Decimal Inch) | 6.9400 | |
| Length (Decimal Inch - 4 Decimals) | 6.1300 | |
| Width (Decimal Inch - 4 Decimals) | 4.0800 | |
| UNSPSC Code | 26111500 |
