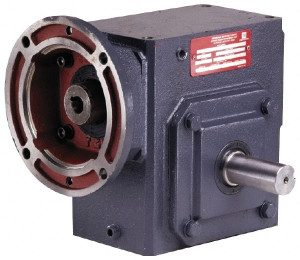

Morse 262Q56R30 2.62 Centerline Distance, 30:1, 58 RPM Output, 3/4 Input Horsepower, 660 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Single Shaft Right, 5/8" Bore, 7.12" Long x 4.44" Wide x 8" High, 56C NEMA 262Q56R30 - 08434755
Brand: Morse- SKU:
- 08434755
- ID:
- 559347
$2,528.78
Morse 262Q56R30 2.62 Centerline Distance, 30:1, 58 RPM Output, 3/4 Input Horsepower, 660 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Single Shaft Right, 5/8" Bore, 7.12" Long x 4.44" Wide x 8" High, 56C NEMA, 220 In/Lb. Min Torque
Manufacturer Part #: 262Q56R30
S/N: 08434755
UNSPSC: 26111500
UPC: 662288353331
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 2.6200 | |
| Shaft Type | Single | |
| Ratio | 30 | 1 |
| Maximum Input Horsepower | 3/4 | |
| Nema/Iec Frame Size | 56C NEMA | |
| Minimum Torque (In/Lb) | 220.0 | |
| Maximum Torque (In/Lb.) | 660.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 1.1250 | |
| Minimum Input Horsepower | 0.25 | |
| Output RPM at 1750 Input | 58.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 440 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 290 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 660 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 220 | |
| Height (Decimal Inch) | 8.0000 | |
| Length (Decimal Inch - 4 Decimals) | 7.1200 | |
| Width (Decimal Inch - 4 Decimals) | 4.4400 | |
| UNSPSC Code | 26111500 |
